Install Loader on Tractor

causym CAUTION: Approximate weight of loader is 238 kg (525 lbs). To help prevent personal injury from falling or shifting loader, use a lifting device to position.

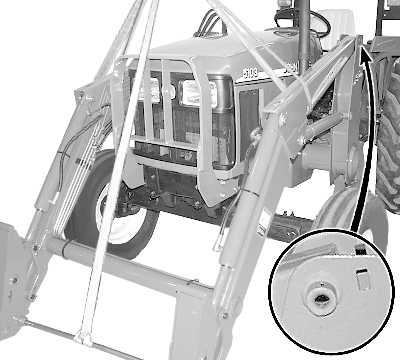

1. Attach lifting straps/chains to both sides and front of loader and an overhead hoist.

2. Position loader around front of tractor.

3. Align holes in mast with loader boom holes.

W06887

OUO6038,0001B37 -19-19OCT04-1/2

NOTE: Loosen plugs on lift cylinder hydraulic lines to manually extend cylinders as necessary for alignment.

4. Attach loader and lift cylinders to masts using pins (A and B) and cotter pins (C) as shown.

5. Remove lifting straps/chains.


A-Pin (2 used)
B-Pin (2 used)
C-Cotter Pin (2 used)
