Installing Hitch Pin Bushings on Ballast Box for Category 2 Hitch (All Except 5225 and 5325 Tractors)

NOTE: Install bushings on both hitch pins. Right-hand side shown.

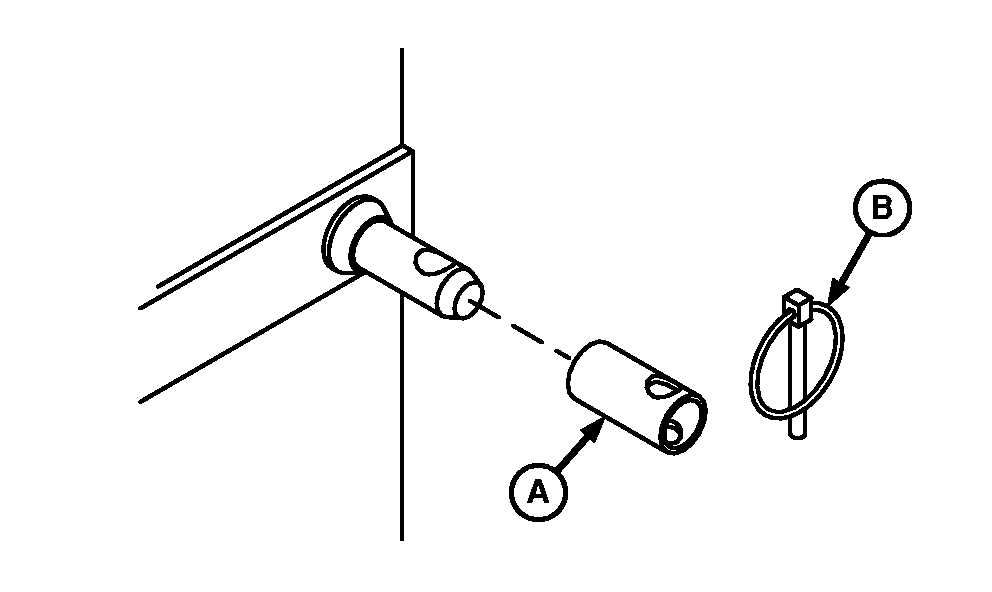

1. Install bushing (A) over hitch pin with cross hole as shown.

2. Install quick-lock pin (B).

A-Bushing
B-Quick-Lock Pin

OUO6077,0001646 -19-19OCT04-1/1
