Detaching and Attaching Bucket or Attachment

NOTE: Procedure is the same for all attachments. Bucket attachment shown.

2. Roll bucket back slightly and raise boom approximately 460 mm (18 in.) above ground level.

3. Engage tractor parking brake and shut off tractor engine.

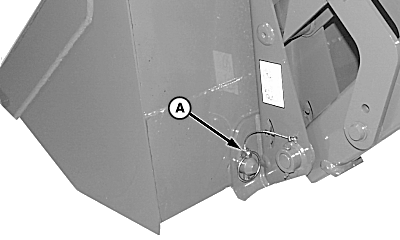

4. Remove quick lock pin (A) from each side of attachment.

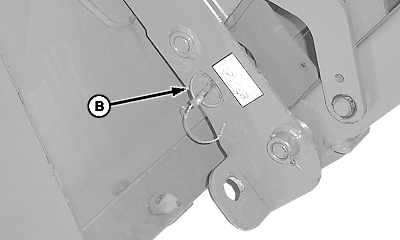

5. Store pins in storage position (B).

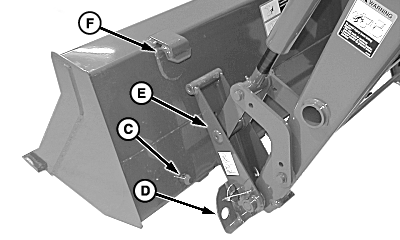

6. Start tractor engine and slowly extend bucket cylinders until pin (C) releases from strap (D) on each side of attachment.

7. Lower loader boom, place transmission in REVERSE and move away from attachment. Carrier (E) will release from hook (F) on each side of attachment.

8. Shut off tractor engine and remove key.

9. Attach bucket/attachment in reverse order as detached.

A-Quick Lock Pin
B-Storage Position
C-Bucket Pin
D-Strap
E-Carrier
F-Hook
