Prepare the Tractor

1. Prepare tractor for the loader. Refer to Preparing the Tractor section for the following:

  • Approved tractor
  • Tire requirements
  • Tread settings
  • Rear ballast requirements
  • Remove front weights

2. Install hood guard. (Refer to Installation Instructions available on-line.)

OUO6077,0001654 -19-18APR06-1/2

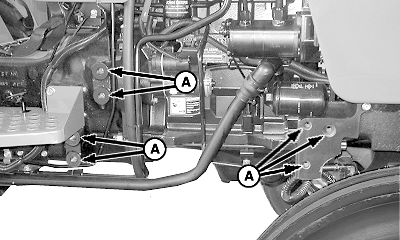

W05795

5000, 5003, 5000 TEN, and 5000 TWENTY Series

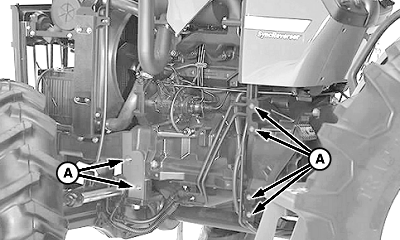

W06454

5105 and 5205 (Left-Hand Side Shown)


A-Holes

3. Locate loader mounting holes (A) along tractor frame.

causym CAUTION: Avoid potentially toxic fumes and dust. Hazardous fumes can be generated when paint is heated by welding, soldering, grinding or using a torch.

Remove paint before heating. (Refer to REMOVE PAINT BEFORE WELDING OR HEATING in Safety section.)

4. Remove paint from contact areas around mounting holes.

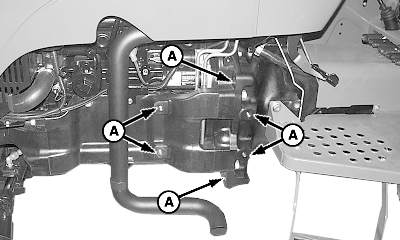

W07026

5225 and 5325 (Left-Hand Side Shown)

OUO6077,0001654 -19-18APR06-2/2
