Identifying Hose Connections-5220, 5225, 5320 and 5325 Tractors

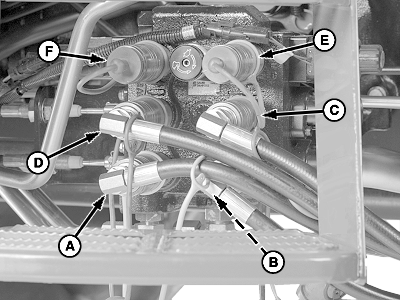

Loader Hoses
|

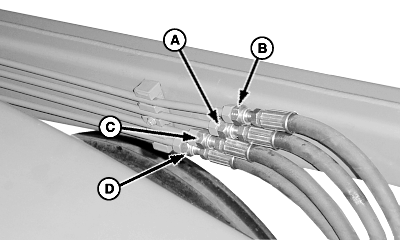

ICV Hoses (If Equipped)
|

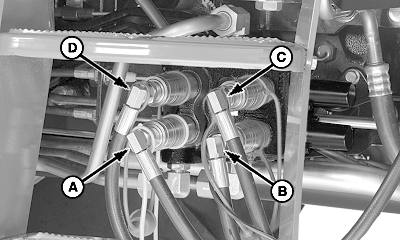

Two-Function Mid-Mount Valve
|

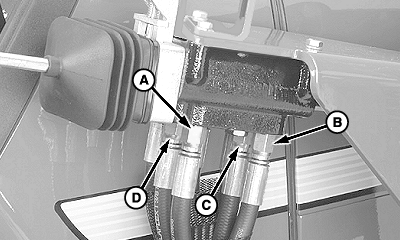

Three-Function Mid-Mount Valve (if equipped)
|
|
 CAUTION:
Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control levers only if hoses are connected to tractor selective control valves as shown.
| Key |
Dust Cap Color |
Symbol Reference |
Hydraulic Function |
| A |
Yellow |
II (retract) |
Bucket Cylinder-Head End |
| B |
Black |
II (extend) |
Bucket Cylinder-Rod End |
| C |
Blue |
I (extend) |
Lift Cylinder-Head End |
| D |
Red |
I (retract) |
Lift Cylinder-Rod End |
| E |
Orange |
III (extend) |
Attachment Cylinder-Head End |
| F |
Green |
III (retract) |
Attachment Cylinder-Rod End |
|
|
|
|
OUO6077,00018F0 -19-19OCT04-1/1
|
|
