Identifying Hose Connections-5105 and 5205 Tractors
W05793

Loader Hoses
W06551

ICV Hoses (If Equipped)

causym CAUTION: Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control levers only if hoses are connected to tractor selective control valves as shown.

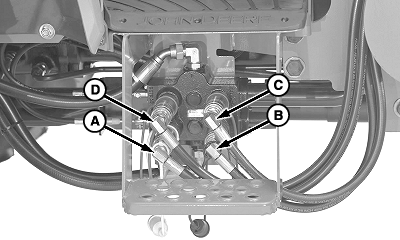

Key Dust Cap Color Symbol Reference Hydraulic Function
A Yellow II (retract) Bucket Cylinder-Head End
B Black II (extend) Bucket Cylinder-Rod End
C Blue I (extend) Lift Cylinder-Head End
D Red I (retract) Lift Cylinder-Rod End


W06554

Mid-Mount Valve

OUO6077,00018F9 -19-19OCT04-1/1
