Setting Front Tread Width

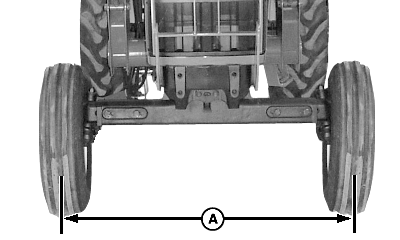

Front tread width (A) should be set to at least 1600 mm (63 in.). Wider settings can be used. Do not exceed maximum width recommended in tractor Operator's Manual for loaders. Use the same tread width on front and rear tires whenever possible. (See SELECTING REAR TREAD WIDTH in this section.)

See your tractor Operator's Manual to make adjustments.

A-Tread Width
