Assemble slip clutch in reverse order of disassembly using the following instructions:
Install belleville spring (C) with concave side facing away from yoke end.
IMPORTANT:
To avoid driveline damage, DO NOT overtighten cap screws and lock nuts. A gap must be left between clutch plate (B) and belleville spring (C).
Tighten cap screws and lock nuts (D) leaving a gap (A) between clutch plate (B) and belleville spring (C) according to specifications.
Specification
Clutch Plate-to-Belleville Spring
-Gap (A)
4 mm
(0.157 in.)

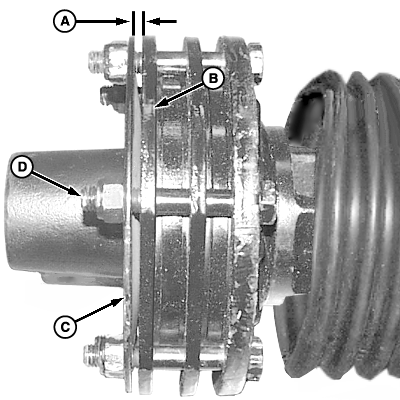

A-Gap, 4 mm (0.157 in.)
B-Clutch Plate
C-Belleville Spring
D-Cap Screw and Lock Nut (6 used)
