Every 10 Hours or Daily

Keeping Rotary Cutter Clean

IMPORTANT: Avoid machine damage due to build-up of debris on rotary cutter deck. Clean debris from deck daily or more often if necessary.

Build-up of debris may interfere with drivelines and cause gear cases to overheat resulting in damaged components. Rusting of deck can be caused by moisture in built-up debris.

Clean all debris from deck at the end of each day's operation.

W04266

OUO6077,0001418 -19-23MAY07-1/13

Checking Gear Case Oil Level

NOTE: Perform the following procedure on all gear cases with rotary cutter on level ground. Left-hand side shown.

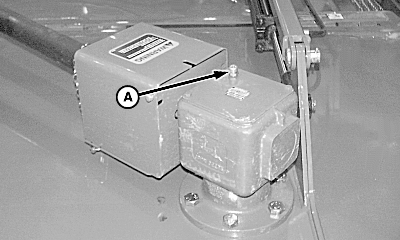

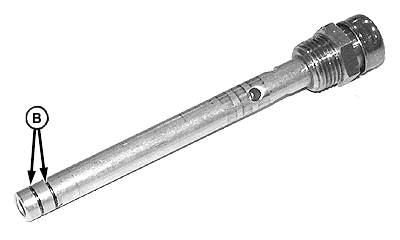

1. Remove dipstick/vent (A). Oil level should be between lines (B). Add John Deere GL-5 GEAR LUBRICANT or equivalent, if necessary.

2. Install dipstick/vent.


A-Dipstick/Vent
B-Lines

W04308
W03432

OUO6077,0001418 -19-23MAY07-2/13

Hitch-to-Mast Bushings
W07828

OUO6077,0001418 -19-23MAY07-3/13

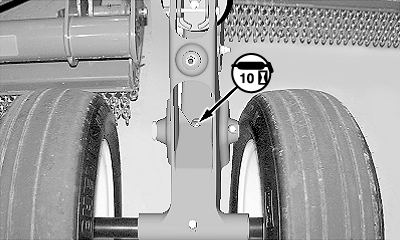

Wheel Support Bushings (4 Locations)
W07803

Center Section Support Shown

OUO6077,0001418 -19-23MAY07-4/13

Axle Assembly-to-Frame Bushings

Lubricate bushings on each end of axle supports.

W04417

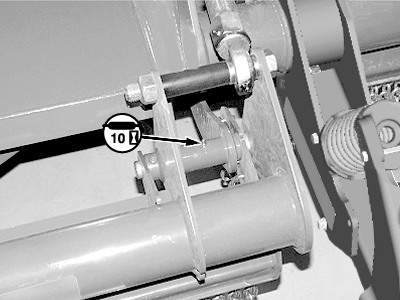

Outside Wing Section

W07795

Inside Wing Section

OUO6077,0001418 -19-23MAY07-5/13

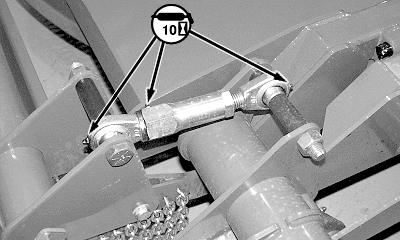

Wing Turnbuckles
W04783

OUO6077,0001418 -19-23MAY07-6/13

Input Drivelines

IMPORTANT: Unfold wings before lubricating drivelines.

For ease of access to driveline at tractor connection, leave rotary cutter attached to tractor and turn at an angle to expose lubrication fittings.


A-Grease Fitting

W08650

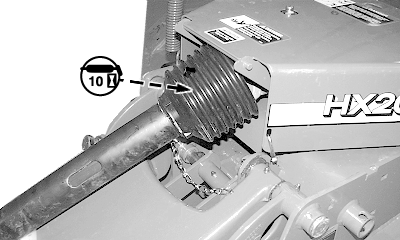

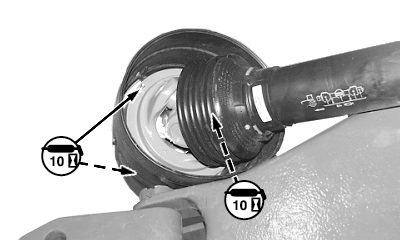

Driveline Joint at Splitter Box

W08651

CV Joint at Tractor

W04790

OUO6077,0001418 -19-23MAY07-7/13

W05214


A-Fitting

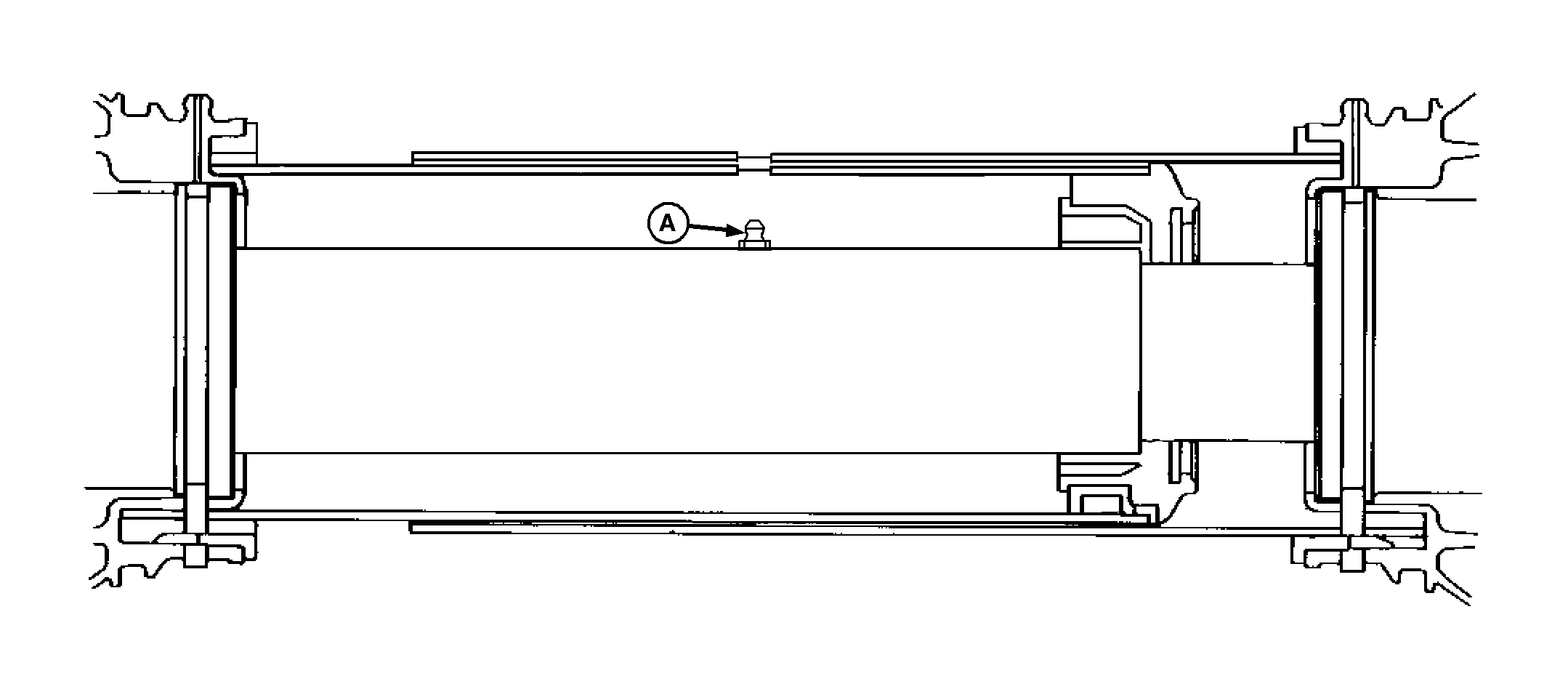

Lubricate sliding tube as follows:

  • Access lubrication fitting (A) by lining up holes in both shields.
  • Inject grease through fitting (A) into internal contact areas of driveline sliding units.

OUO6077,0001418 -19-23MAY07-8/13

W05009

Constant Velocity Joint Cross-Section


A-Cavities


B-Fittings


C-Cavity


D-Passage

IMPORTANT: To prevent premature failure, the constant velocity joint requires extensive lubrication after every day of operation. The joint should be lubricated when it is warm or soon after operation.

Using fittings (B), lubricate constant velocity joints very generously to fill cavity (C), forcing grease through passage (D) and into cavity (A). Lubricate until grease is visible around ball joints.

OUO6077,0001418 -19-23MAY07-9/13

Gear Case Drivelines

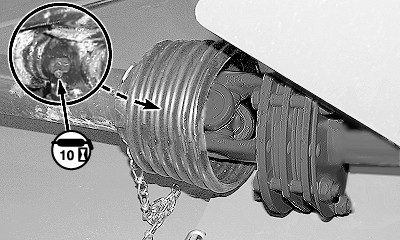

Unfold wings before lubricating wing drivelines.

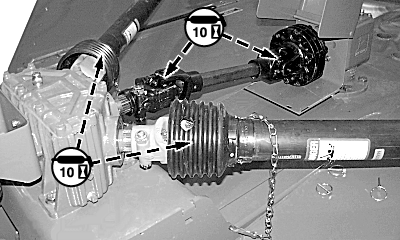

Lubricate twelve fittings after each day of operation.

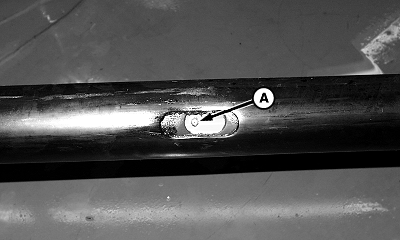

A-Fitting

W08647
W08649
W04790

OUO6077,0001418 -19-23MAY07-10/13

W05214


A-Fitting



Lubricate sliding tube as follows:

  • Access lubrication fitting (A) by lining up holes in both shields.
  • Inject grease through fitting (A) into internal contact areas of driveline sliding units.

OUO6077,0001418 -19-23MAY07-11/13

Checking Tire Inflation Pressure (Severe Duty Ag Tires)

Specification

Tire -Inflation Pressure 193 kPa (1.9 bar) (28 psi)

W07746

OUO6077,0001418 -19-23MAY07-12/13

Air Springs-CX15 and CX20

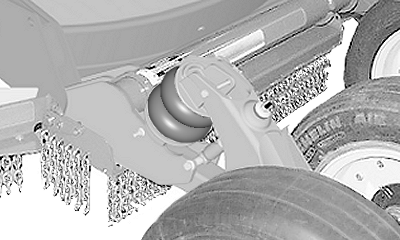

Check air spring inflation. (See LEVELING THE ROTARY CUTTER in the Preparing the Rotary Cutter section.)
