Lowering Wing(s)

CAUTION: To help prevent personal injury or death from falling wing, clear area of bystanders when lowering wing.

Perform this procedure on "LEVEL GROUND" only, machine instability may be caused by weight shifting from one side to the other as the wing is being lowered.

1. Park rotary cutter and tractor on level ground.

2. Operate control lever enough to relieve weight from wing lock pin.

3. Move control lever to "NEUTRAL" position.

OUO6077,000141D -19-12JAN06-1/2

CAUTION: To help prevent bodily injury or death from falling wings, do not walk under wings after disengaging lock pins. When lock pins are removed, wings are held in place by hydraulic pressure only.

4. Remove quick-lock pin and wing lock pin (A) on wing(s) to be lowered.

5. Place wing lock pin in storage hole (B) and fasten with quick-lock pin.

IMPORTANT: Do not enter FLOAT position while lowering wings.

6. Move control lever to position to lower wing(s).

7. Move control lever(s) to FLOAT position after wings have been lowered.

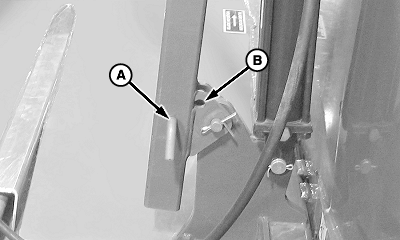

A-Pin
B-Storage Hole
