OMW51060: HX15, HX20, CX15 and CX20 Flex-Wing Rotary Cutters, Block File: OUO6077_0001425_19

Positioning Wheels

causym CAUTION: When positioning wheels, it will be necessary to place rotary cutter on safety stands. before servicing, refer to PRACTICE SAFE SERVICE PROCEDURES in the Service section.

1. Using a hard level surface, position rotary cutter on safety stands so wheels are off of ground.

2. Remove cap screw and nut (A).

3. Slide spindle to the side until hole in suspension arm aligns with second hole in axle.

4. Install cap screw and nut.

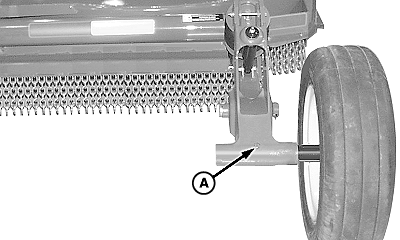

Single Wheel Shown

A-Cap Screw and Nut

OUO6077,0001425 -19-29MAR06-1/1
