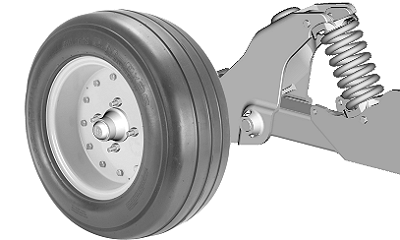

Install Wheels on Wings-Severe Duty Ag Tires

NOTE: Machine may be shipped with wheels installed.

If rims are chamfered, install nuts with chamfered side to wheel.

1. Attach wheels using 1/2 x 1-3/4 in. bolts and hub nuts. Tighten to specifications.

Specification

2. Check inflation pressure. (See Lubrication and Maintenance section.)

OUO6077,000142C -19-20JAN06-1/1
