Recommended Tractor

IMPORTANT: Tractor drawbar can be damaged, avoid rough terrain and traveling at high speed. Heavy drawn equipment such as this rotary cutter can place excessive strain on drawbar.

Model Minimum PTO Horsepower Drawbar Maximum Static Vertical Load
HX15 41 kW (55 hp) 890 kg (1960 lb)
HX20 56 kW (75 hp) 1165 kg (2569 lb)
CX15 48 kW (65 hp) 960 kg (2115 lb)
CX20 56 kW (75 hp) 1200 kg (2646 lb)



The recommended tractor hydraulic outlets are as follows:

  • HX15 and HX20: Two SCV's (simultaneous wing operation)
  • CX15 and CX20: Three SCV's (independent wing operation)

For tractors with one SCV, an independent three-function control valve is available to operate the rotary cutter. (See your John Deere dealer.)

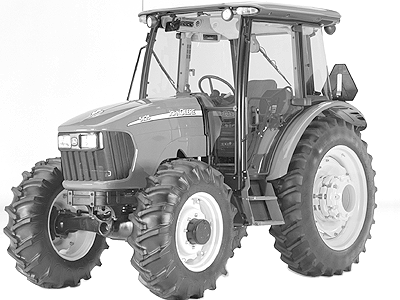

W07757

5425 Shown (HX/CX15 only)

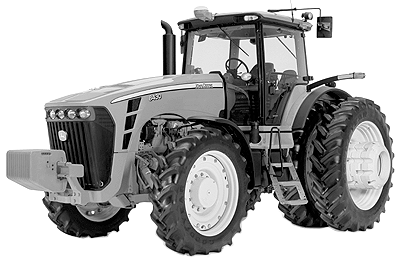

W07758

8430 Shown

OUO6077,000143C -19-08FEB06-1/1
