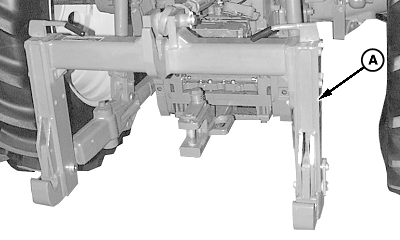

Removing Quick Coupler Hitch (If Equipped)IMPORTANT: To avoid machine damage during turns, quick coupler hitch must be removed and draft link height must be adjusted. Remove quick coupler hitch (A). Adjust draft link height to provide highest lift possible to clear driveline during turns. (Refer to tractor Operator's Manual.)
|
|
OUO6077,000143E -19-10MAY06-1/1 |
