Adjusting Hydraulic Flow Rate

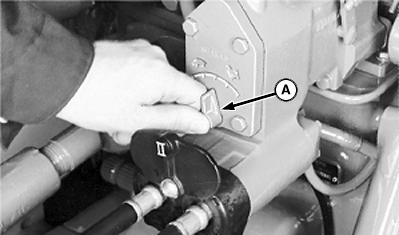

RW5885

Older John Deere Tractor

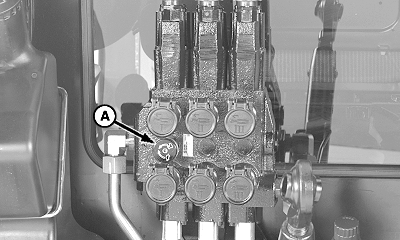

W07101

5000 TWENTY-FIVE Series Tractor

Dual selective control valves are required.

IMPORTANT: Excessive operating speed may cause machine damage or injury. Be sure hydraulic flow control/indicator is adjusted properly.

Lift cylinder (center section): Set hydraulic flow control/indicator (A) to fully raise or lower machine in 2 seconds.

Wing cylinders: Set hydraulic flow control/indicator (A) to the slowest possible speed.

See your tractor Operator's Manual for more information.


A-Hydraulic Flow Control/Indicator

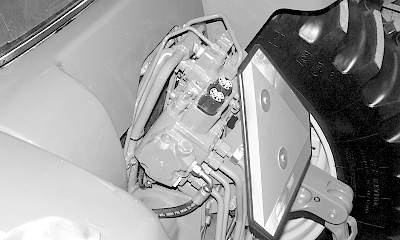

W06000

Mechanical SCV (7000 Series Tractor Shown)

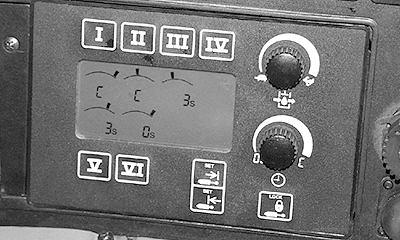

W06225

TouchSet™ Controls (7000 and 8000 Series Tractors)

OUO6077,000143F -19-09FEB06-1/1
