Connecting Driveline Shield Chains

CAUTION: Check to be sure driveline shields are in place to avoid entanglement in rotating drivelines.

IMPORTANT: The purpose of the chain is to prevent spinning of the outer shield which will result in prolonged shield life.

1. Attach driveline shield chains to gear case shields and splitter gear case support where holes (A) are provided.

2. Attach input driveline shield chains to tractor PTO shield.

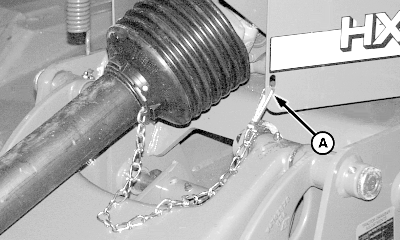

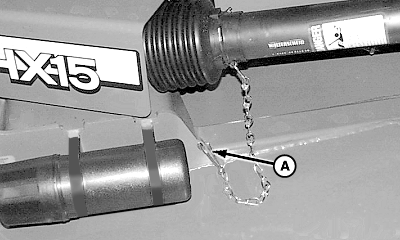

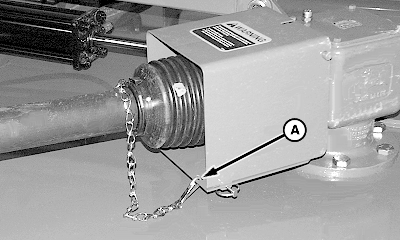

A-Driveline Chain Attaching Point
