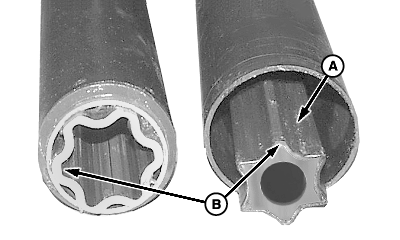

Assembling Main PTO Driveline Telescoping Members (If Necessary)1. Apply multipurpose grease around outside surface of inner driveline (A).2. Align locating groove/flat (B) on driveline halves and assemble telescoping members together. 3. Apply multipurpose grease, or equivalent, to all lubrication fittings before operating. (See Lubrication and Maintenance section.)
|
|
OUO6077,0001449 -19-24MAY07-1/1 |
