Attaching PTO Driveline

causym CAUTION: Shut off tractor engine before attaching PTO driveline. Entanglement in rotating driveline can cause serious injury or death.

IMPORTANT: Keep driveline and powershaft splines clean of paint, dirt and chaff. Apply John Deere SD POLYUREA grease or equivalent on tractor PTO shaft before attaching PTO driveline.

1. Shut off tractor engine.

2. Raise tractor PTO shield, if equipped.

TS1644

OUO6077,000144B -19-21MAY07-1/3

IMPORTANT: Do not use plastic shield (B) to lift driveline into position. Damage to shield can occur.

3. Support driveline, cradling it in your hand.

4. Pull back collar (A). Align splines by rotating rotary cutter driveline. Push driveline onto tractor PTO shaft until collar snaps into place.

5. Pull back on shield (B) to make sure driveline is locked. Do not pull collar, this will release latch.

6. Lower tractor PTO shield, if equipped.

7. Attach PTO driveline shield chain to a fixed point on tractor.

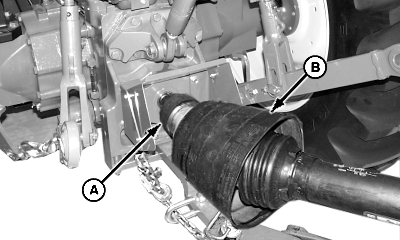

W05297


A-Collar
B-Plastic Shield

OUO6077,000144B -19-21MAY07-2/3

8. If cutter is being returned to service from storage, evenly tighten six lock nuts (A) on slip clutch to apply spring load to clutch disks.

IMPORTANT: Slip clutch components must be free to rotate when necessary. Clutch disks will seize if left unused for a period of time, especially in humid or damp conditions. Linings may bond to metal parts causing slip clutch to be ineffective, resulting in machine damage.

9. If cutter has not been used for a while, free slip clutch disks and adjust spring load. (See Freeing Slip Clutch procedure in AS REQUIRED in Lubrication and Maintenance section.)

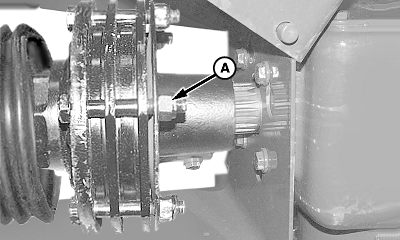

W08643


A-Lock Nut (6 used)
