Attaching to Tractor Hydraulic System

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

1. Relieve hydraulic pressure in all circuits. (See your tractor Operator's Manual.)

causym CAUTION: 7000 and 8000 Series John Deere Tractors: Lock out SCV controls (transport lock) before attaching implements to prevent implement movement and possible personal injury.

2. If equipped, lock out SCV controls (transport lock). (See your tractor Operator's Manual.)

X9811

OUO6077,000144C -19-09FEB06-1/3

IMPORTANT: All hydraulic couplers must be clear of debris, dust, and sand. Use protective caps on fluid openings until ready to make connection. Foreign material can damage the hydraulic system.

NOTE: To help identify and properly connect hoses, Hose Identification Kits are available from your John Deere dealer.

Tractor remote cylinder receptacles are labeled I through IV. Receptacles are identified from bottom-to-top or left-to-right. Refer to your tractor Operator's Manual for SCV configuration.

ISO hydraulic couplers are standard with the rotary cutter. If they do not fit the tractor, see your John Deere dealer.

3. Clean off SCV dust covers.

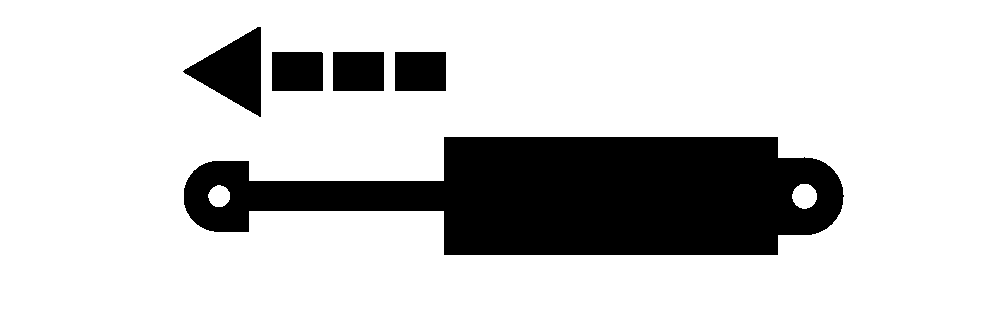

4. Check to be sure symbols on receptacle identification plate, indicating cylinder movement, match cylinder travel direction.

OUO6077,000144C -19-09FEB06-2/3

5. Insert center body lift hydraulic hose into EXTEND side of SCV I.

NOTE: On rotary cutters without independent wing lift, install wing lift hydraulic hose in SCV II.

6. Insert right-hand wing lift hydraulic hose into EXTEND side of SCV II.

7. Insert left-hand wing lift hydraulic hose into EXTEND side of SCV III.

8. Push hoses firmly into tractor receptacles.

9. If equipped, unlock SCV controls. (See your tractor Operator's Manual.)

W07759

OUO6077,000144C -19-09FEB06-3/3
