Adjusting Cutting Height

NOTE: Blade cut is approximately 25.4 mm (1 in.) higher than wear shoes.

2. Extend or retract lift cylinder using tractor SCV to adjust cutting height as desired at rear of machine.

OUO6077,0001454 -19-20APR06-1/2

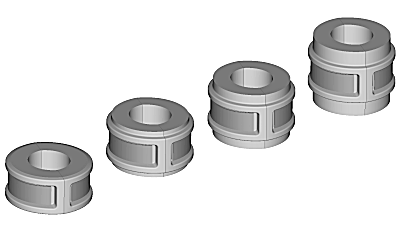

NOTE: Cylinder stops (provided with machine) are used to return rotary cutter to same cutting height after cylinder is extended for any reason (i.e. Transporting). Various sizes of cylinder stops are available.

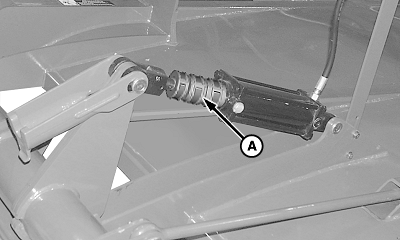

3. Install the correct number/size of cylinder stops (A) around lift cylinder rod as required to attain desired cutting height.

A-Cylinder Stops
