Operating Rotary Cutter

Rotary Cutter with TWO Hydraulic Hoses
(Simultaneous Wing Operation)

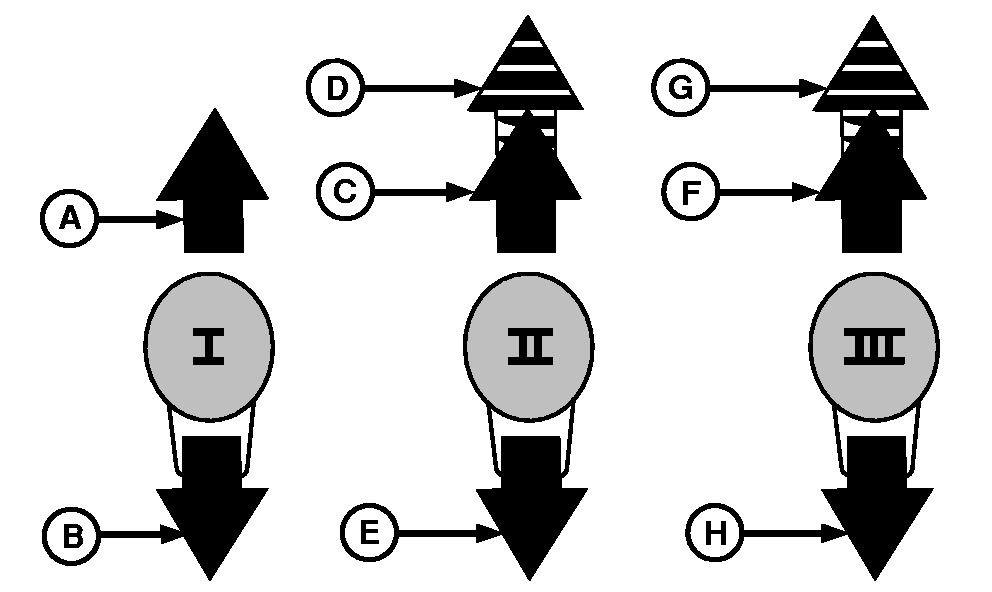

Key SCV Lever Movement Cylinder Machine Operation
A I Forward/Down Center (Lift) Lower Machine
B I Back/Up Center (Lift) Raise Machine
C II Forward/Down Wing Cylinders Lower Wings
D II Locked Forward/Down Wing Cylinders Wings-FLOAT
E II Back/Up Wing Cylinders Raise Wingsa
aWing that moves most freely will raise first.

Rotary Cutter with THREE Hydraulic Hoses
(Independent Wing Operation)
Key SCV Lever Movement Cylinder Machine Operation
A I Forward/Down Center (Lift) Lower Machine
B I Back/Up Center (Lift) Raise Machine
C II Forward/Down Right-Hand Wing Cylinder Lower
D II Locked Forward/Down Right-Hand Wing Cylinder FLOAT
E II Back/Up Right-Hand Wing Cylinder Raise
F III Forward/Down Left-Hand Wing Cylinder Lower
G III Locked Forward/Down Left-Hand Wing Cylinder FLOAT
H III Back/Up Left-Hand Wing Cylinder Raise



See your tractor Operator's Manual for complete information about using controls.

W07760
W07761

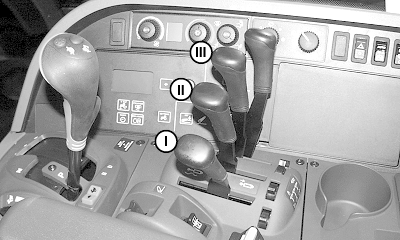

Selective Control Valve Levers

W07762

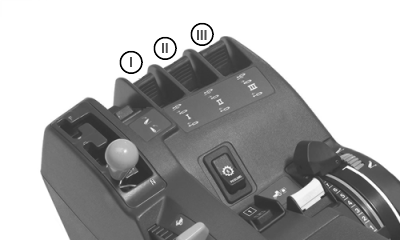

TouchSet™ Controls (CommandArm™ Levers)

OUO6077,0001456 -19-10FEB06-1/1
