Cutting Applications

Flex-wing rotary cutters are designed for cutting right-of-ways, pasture maintenance, reclaiming old pastures, shredding "heavy" row crop residues, and light brush clearing up to 50.8 mm (2 in.) in diameter.

Do not use rotary cutters for heavy brush clearing.

CAUTION: To help prevent personal injury from thrown objects or debris, DO NOT operate machines with wing(s) positioned above 45 degrees.

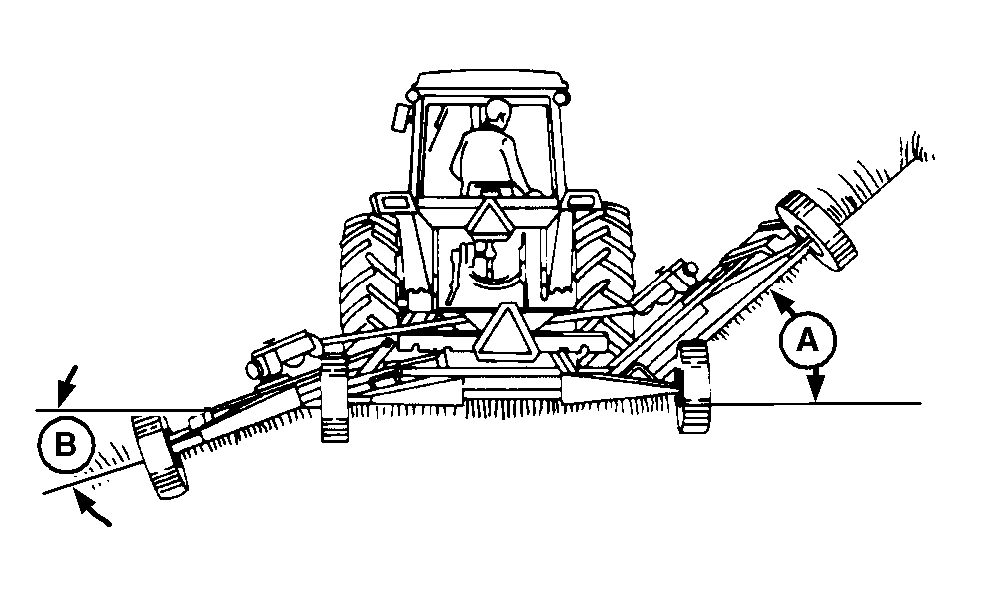

Operating machine with wing(s) above 45 degrees (A) or below 22 degrees (B) is NOT recommended.

A-45 Degrees Up
B-22 Degrees Down

OUO6077,0001459 -19-27JUN06-1/1
