Wing Flotation

NOTE: Tractor selective control valves must have "FLOAT" detent to provide true wing flotation.

For tractors without "FLOAT" detent on selective control valves, control lever(s) will have to be manually operated to have machine follow ground contour.

1. Extend cylinders (A) to lower wings to the ground.

2. Flotation of wings is controlled by placing selective control lever for wing cylinders in FLOAT detent position.

W04326

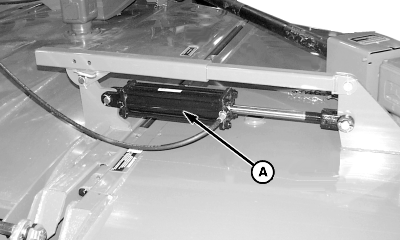

A-Cylinder

OUO6077,000145A -19-09FEB06-1/2

IMPORTANT: To prevent structural damage, always operate in FLOAT position.

3. If equipped, lift stop (A) and slide it forward. Lever can then be pushed all the way forward to float position (B). Cylinder is free to extend or retract, letting implement follow ground contour.


A-Stop
B-FLOAT Position

RW5843
RW5879
