Removing and Installing PTO Driveline

1. Remove quick-lock pins and raise splitter gear case shield.

2. Remove cap screw and lock nut (A) from driveline.

3. Remove driveline.

4. Install in reverse order of removal. Tighten lock nut to specifications.

Specification

Lock Nut -Torque 240 N·m (177 lb-ft)

W05274

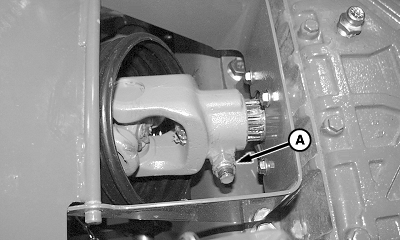

PTO Driveline at Splitter Gear Case


A-Cap Screw and Lock Nut

OUO6077,00014AA -19-22OCT04-1/1
