Every 50 Hours

W08998

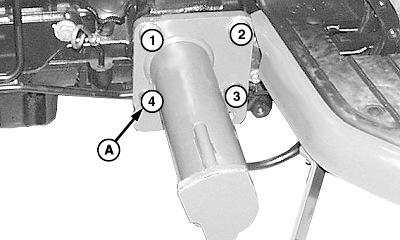

Mounting Frame (Left-Hand Side Shown)

W06599

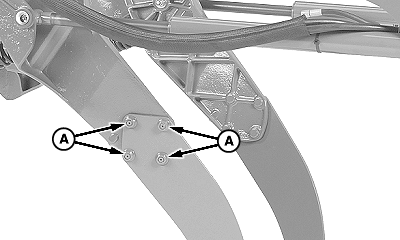

Loader Hardware (Right-Hand Side Shown)



A-Hardware, M16



Tighten M16 hardware (A) on both sides to specification. Tighten mounting frame hardware in sequence shown.

Specification

Hardware (A) -Torque 310 N·m (229 lb-ft)

OUMX005,0001392 -19-11DEC08-1/5

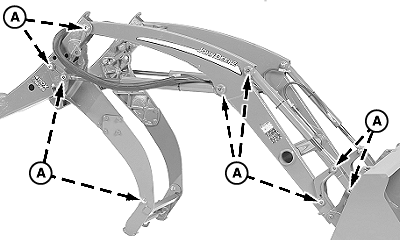

400X: Tighten eighteen nuts (A) (inside frame), on pivot pins and front frame on both sides, to specification.

Specification

Nuts -Torque 150 N·m (111 lb-ft)


A-Nuts, M16

W20227

OUMX005,0001392 -19-11DEC08-2/5

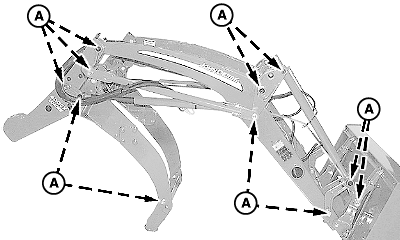

400CX: Tighten twenty-two nuts (A) (inside frame), on pivot pins and front frame on both sides, to specification.

Specification

Nuts -Torque 150 N·m (111 lb-ft)


A-Nuts, M16

W20228

OUMX005,0001392 -19-11DEC08-3/5


Checking Parking Latch Cap Screw Adjustment

1. Be sure loader is equipped with materials bucket, 4-in-1 bucket or grapple bucket.

2. Attach loader to tractor. (See Attaching Loader section.)

3. Start tractor engine and lower ballast box or rear implement to the ground.

4. Dump bucket 10°-20° and lower to ground.

5. Retract lift cylinders, raising front wheels 25-50 mm (1-2 in.) off ground. (Do not retract lift cylinders completely.)

6. On both sides, make sure latch (B) is fully seated against brace pad (F) and latch pin (D) is engaged with leaf spring (E). Cap screw (A) should contact mast pad (G). If not, adjust each cap screw as follows:

a. Loosen locking screw (C).

b. Turn cap screw (A) until it makes contact with mast pad but latch is still free to rotate.

c. Tighten locking screw to specification.

Specification

Locking Screw -Torque 25 N·m (221 lb-in.)

NOTE: To disable the quick park feature, loosen locking screw (C), turn cap screw (A) until it is tight against mast pad (G) so latch (B) cannot rotate freely. Tighten locking screw to specification.

7. Extend lift cylinders to lower tractor to ground.

8. Shut off tractor engine and remove key.

Check Transmission/Hydraulic Oil Level

1. Cycle all cylinders three or four times.

W20215
W20229

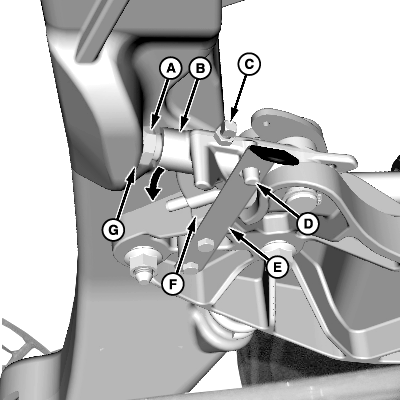

Left-Hand Side Shown


A-Cap Screw
B-Latch
C-Screw, Locking
D-Latch Pin
E-Leaf Spring
F-Brace Pad
G-Mast Pad

OUMX005,0001392 -19-11DEC08-4/5


2. Retract bucket cylinders completely and lower loader to ground.

3. Check transmission/hydraulic oil level. (See your tractor Operator's Manual).

OUMX005,0001392 -19-11DEC08-5/5
