Final Inspection and Adjustments

IMPORTANT: Hardware torque MUST be checked after the first 10 hours and every 50 hours thereafter.

1. Check mounting frame and loader hardware. (See FIRST 10 HOURS in Lubrication and Maintenance section.)

OUMX005,00017DE -19-30AUG07-1/2

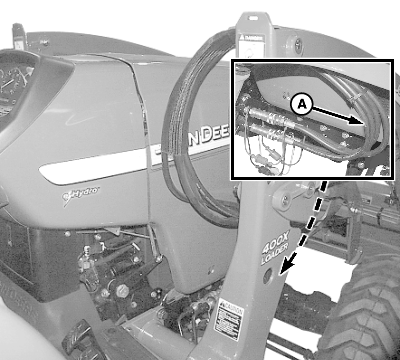

2. Make sure hose bundle (A) is routed to avoid contact with loader frame.

3. Start tractor engine and check loader operation. (See procedure in Attaching Loader section.)

4. Cycle all cylinders three or four times.

5. Retract bucket cylinders completely and lower to the ground.

6. Shut off tractor and remove key.

7. Check tractor transmission/hydraulic oil level. (See your tractor Operator's Manual.)

8. Check parking latch cap screw adjustment. (See "Checking Parking Latch Cap Screw Adjustment" procedure in EVERY 50 HOURS of Lubrication and Maintenance section.)

W07187


A-Hose Bundle

OUMX005,00017DE -19-30AUG07-2/2
