Required Minimum Tractor Ballast
All of the following requirements are necessary to prepare the tractor for loader operation:
-
1600 mm (63 in.) or greater rear tread setting.
-
Rear tires filled with liquid ballast.
-
Four rear wheel weights. (400X)
-
Six rear wheel weights. (400CX)
-
500 kg (1102 lb) minimum 3-point hitch ballast.
|

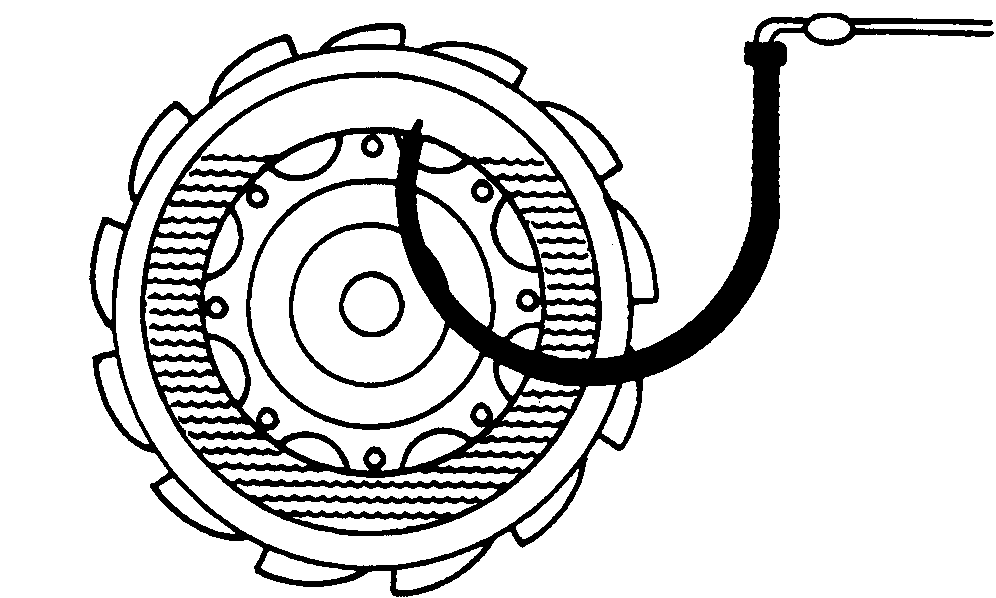

Rear Wheel Ballast

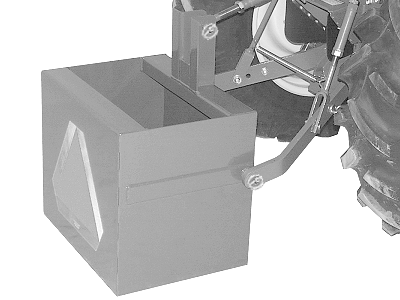

Rear Hitch Ballast
|
