Detaching Loader

causym CAUTION: To help prevent personal injury caused by falling or shifting loader, always detach loader on a hard level surface. Do not detach loader equipped with a pallet fork or bale spear. Use of a materials bucket, 4-in-1 bucket or grapple bucket is recommended.

1. Remove ballast box. (See procedure in this section.)

W14000

OUO6038,0001A8E -19-11DEC08-1/7

2. Be sure loader is equipped with materials bucket, 4-in-1 bucket or grapple bucket.

3. Start tractor engine.

4. Release parking brake and/or place transmission in NEUTRAL .

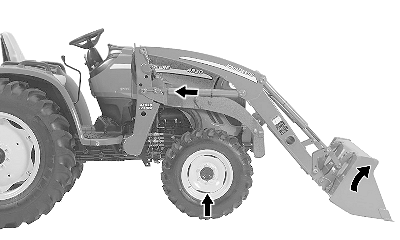

5. Dump bucket 10°-20° and lower to ground.

6. Retract lift cylinders raising front tires 25-50 mm (1-2 in.) off ground. (Do not retract lift cylinders completely.)

W20215

OUO6038,0001A8E -19-11DEC08-2/7

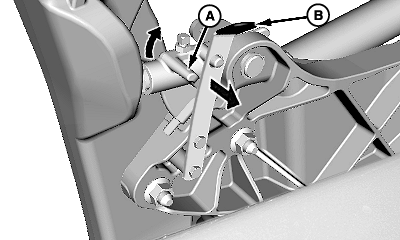

7. Place latches on both sides to the UNLOCKED position by pushing leaf spring (B) inward and pushing forward on latch handle (A).


A-Latch Handle
B-Leaf Spring

W20216

Left-Hand Side Shown

OUO6038,0001A8E -19-11DEC08-3/7

NOTE: Lift cylinders must be fully extended to raise masts high enough to clear front tires.

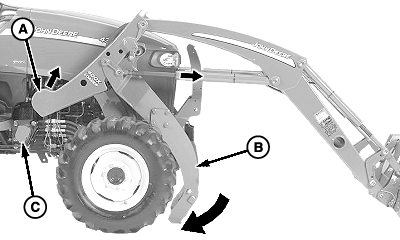

8. Extend lift cylinders until parking stand (B) contacts ground and masts (A) completely lift off frames (C). 400CX: Roll bucket back as lift cylinders are extended to keep bucket level.

9. Engage tractor parking brake and/or place transmission in PARK .

10. Shut off tractor engine and remove key.

W20217


A-Mast (both sides)
B-Parking Stand
C-Mounting Frame (both sides)

OUO6038,0001A8E -19-11DEC08-4/7

causym CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

11. Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)

X9811

OUO6038,0001A8E -19-11DEC08-5/7

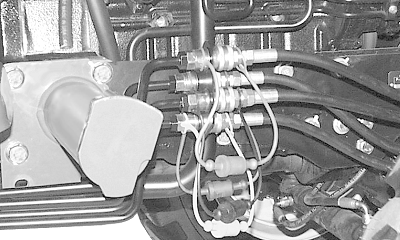

12. Disconnect hoses at couplers and install dust plugs and caps.

W06784

Coupler with Optional Third-Function

OUO6038,0001A8E -19-11DEC08-6/7

IMPORTANT: To avoid hose damage, be sure hoses do not catch on tractor when reversing away from loader.

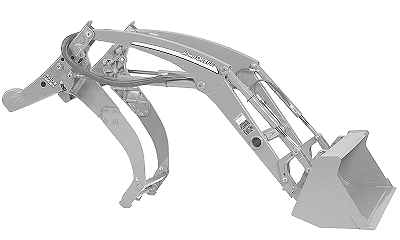

13. Store hoses on lift cylinder, DO NOT lay them on the ground.

14. Start tractor engine.

15. Disengage tractor parking brake and place transmission in REVERSE . Slowly move away from loader.

W20218

OUO6038,0001A8E -19-11DEC08-7/7
