Adjusting Bucket Level Indicator-400CX

NOTE: Indicator position for a bucket will not be the same for another attachment.

1. Position bucket/attachment (A) level on ground.

2. Adjust level indicator rod (B) in tube until bend in rod rests in the bottom of guide rod (D). Tighten cap screw (C).

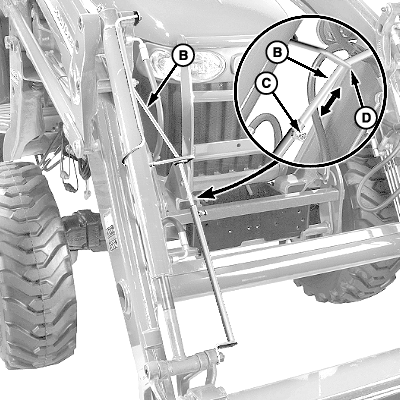

A-Bucket/Attachment
B-Level Indicator Rod
C-Cap Screw
D-Guide Rod
