Accessing Front of Tractor

causym CAUTION: If unable to access front of tractor with loader attached, remove loader or raise up and support with shop stands. Refer to SERVICING LOADER AND/OR TRACTOR SAFELY (LOADER ATTACHED) at the beginning of this section.

4X20 Series Tractors

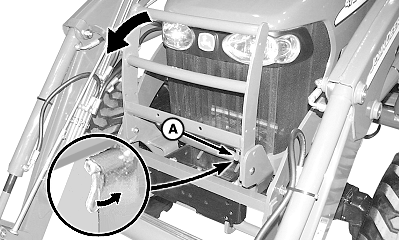

Turn lever (A) and pivot guard forward to access front of tractor.

W06839


A-Lever

OUO6038,0001A98 -19-30AUG07-1/2


4X00 and 4X10 Series Tractors

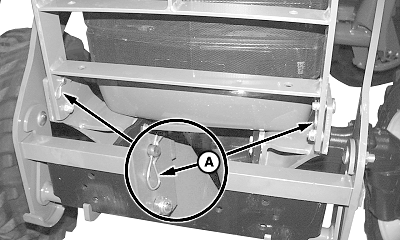

1. Remove spring locking pins (A) from pins in each side of the hood guard.

2. Remove drilled pins and swing hood guard down for access to front of tractor.


A-Spring Locking Pin (1 each side)

W06654

OUO6038,0001A98 -19-30AUG07-2/2
