Adjusting Bucket Level Indicator-400X

NOTE: Indicator position for a bucket will not be the same for another attachment.

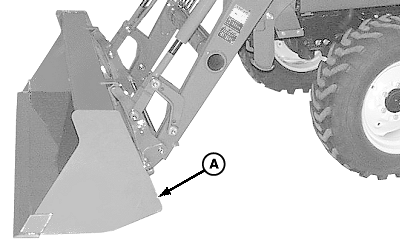

1. Position bucket/attachment (A) level on ground.

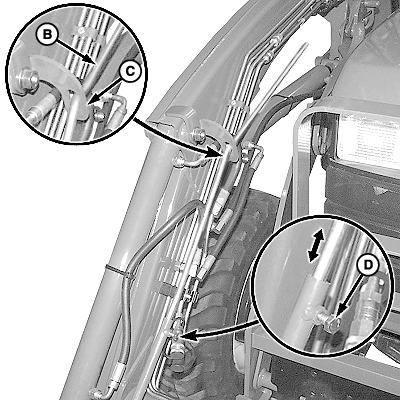

2. Loosen cap screw (D) and adjust rod (B) in tube so that detent rests in the bottom of guide bracket (C).

3. Tighten cap screw to hold rod securely in place.

A-Bucket/Attachment
B-Level Indicator Rod
C-Guide Bracket
D-Cap Screw

OUO6038,0001BC0 -19-11DEC08-1/1
