Prepare the Loader

1. Remove shipping banding and wire.

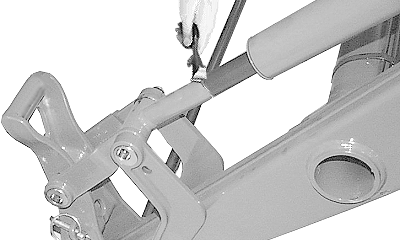

2. Cut paint mask rings off all cylinders.


A-Paint Mask Ring

W07195

OUO6038,0001C6B -19-01NOV06-1/2

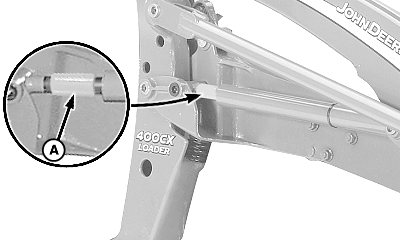

3. Remove and discard spacers (A) from boom cylinders.

4. Install hydraulic hoses. (Refer to Installation Instructions available online).


A-Spacer (1 each side)

W07499

OUO6038,0001C6B -19-01NOV06-2/2
