Install Bucket/Attachment

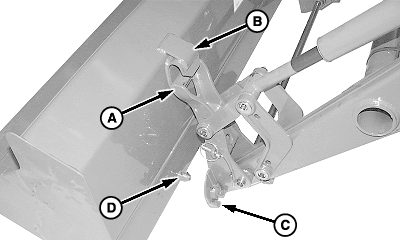

1. Roll top of attachment back and align hook (B) with holder (A).

2. Using lifting straps, raise front of loader high enough to allow pin (D) to locate into holder strap (C) on each side of attachment.

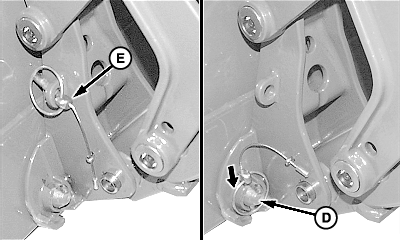

3. Remove quick lock pin (E) from storage position and install into pin (D) on each side of attachment.


A-Holder
B-Hook
C-Holder Strap
D-Bucket/Attachment Pin
E-Quick Lock Pin

W06666
W06667

OUO6074,0000F40 -19-05OCT06-1/1
