Attach Loader to Tractor

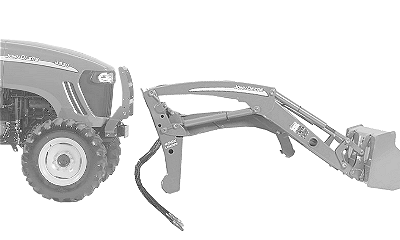

1. Start tractor engine.

2. Drive tractor slowly toward rear of loader stopping approximately 250 mm (10 in.) from loader.

3. Engage tractor parking brake and/or place transmission in PARK .

4. Shut off tractor engine and remove key.

W20232

OUO6074,0000F41 -19-11DEC08-1/3

causym CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

5. Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)

6. Connect hydraulic hoses to couplers on tractor using color-coded caps on hoses, matching numbers and/or colors on decal by coupler plate. (See IDENTIFYING HOSE CONNECTIONS in Service section.)

7. Start tractor engine.

X9811

OUO6074,0000F41 -19-11DEC08-2/3

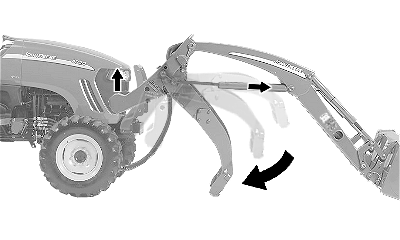

8. Raise loader from ground by extending lift cylinders. Parking stand should contact ground and extend rearward toward tractor.

9. Attach loader to tractor. (See ATTACHING LOADER in Attaching Loader section.)

W20233

OUO6074,0000F41 -19-11DEC08-3/3
