Install Driveline

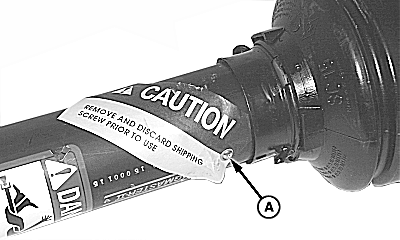

NOTE: Drivelines are shipped with screw (A) installed to prevent driveline from extending.

1. Remove and discard screw (A) and tag.


A-Screw

W03713

OUMX005,000147F -19-23OCT01-1/3

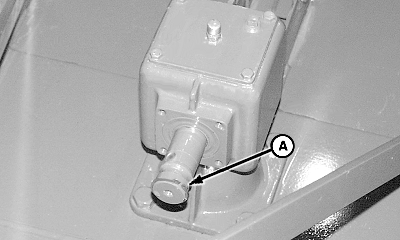

2. LX4 and LX5 only; Remove snap ring (A) from input shaft.

3. Remove paint from gear case input shaft.


A-Snap Ring

W05047

LX4/LX5 Shown

OUMX005,000147F -19-23OCT01-2/3

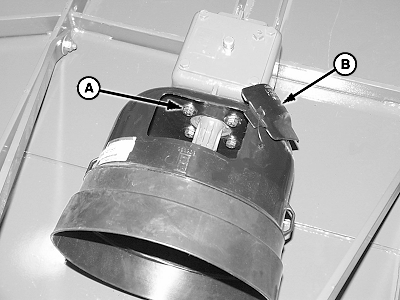

4. Install slip clutch shield (if equipped).

a. Open access panel (B) on shield.

b. Attach shield to gear case using four M8 x 16 cap screws and flat washers (A). Tighten to specifications.

Specification

Cap Screws -Torque 11 N·m (97 lb-in.)

5. Install driveline. (See REMOVING AND INSTALLING DRIVELINE in Service section.)


A-Cap Screw, M8 x 16 (4 used)
B-Access Panel

W05045

LX6 Shown

OUMX005,000147F -19-23OCT01-3/3
