Replacing Driveline Shear Bolt (LX4 and LX5)

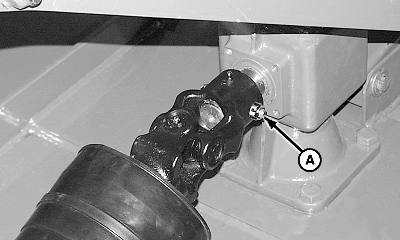

NOTE: Driveline shield pulled back for illustration purposes.

Cutter drive components are protected from shock loads by a shear bolt (A).

IMPORTANT: Avoid shear bolt failure at start up by engaging the PTO slowly at low engine rpm.

If shear bolt fails;

1. Bend back driveline shield cone.

2. Replace with 10.9 grade M10 x 80 cap screw and lock nut.

W05081


A-Shear Bolt
