Install Front Safety Shield-Rubber (If Equipped)

IMPORTANT: Install hardware with nuts and washers on the outside of cutter.

LX4; Install shield using two foot guards (See INSTALL FOOT GUARDS in this section.) and one M12 x 35 cap screw, washer, and lock nut (A). Tighten hardware.

LX5 and LX6; Install shield using two foot guards (See INSTALL FOOT GUARDS in this section.) and four M12 x 35 cap screws, washer, and lock nut (A). Tighten hardware.

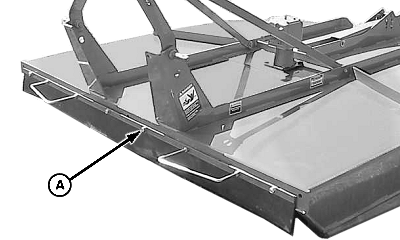

W05339

LX6 Shown


A-Lock Nut, Washer, and Cap Screw, M12 x 35

OUMX005,0001BA0 -19-22MAR05-1/1
