Every 50 Hours

CAUTION: Before servicing machine refer to LUBRICATING AND MAINTAINING MACHINE SAFELY at the beginning of this section.

IMPORTANT: To help prevent structural damage caused by loose hardware, tighten gear case hardware as specified. Check torque after first 8 hours of use and every 50 hours thereafter.

NOTE: Use an assistant to aid in tightening procedure.

An access hole is provided in bottom of blade pan. Manually rotate blade holder to align hole with gear case mounting hardware.

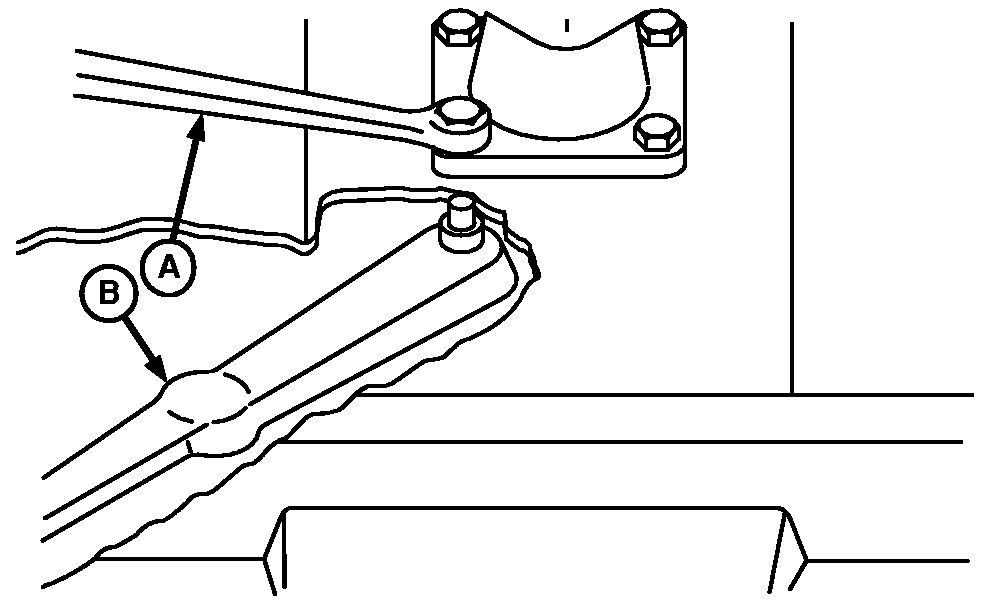

Tighten gear case mounting hardware to specifications using a wrench (A), torque wrench (B) and a torque multiplier if necessary.

Specification

A-Wrench
B-Torque Wrench

OUO6077,0001521 -19-05FEB02-1/1
