Replacing Skid Shoes

CAUTION: When servicing skid shoes, it will be necessary to work underneath cutter. Before servicing cutter, refer to PRACTICE SAFE SERVICE PROCEDURES at the beginning of this section and REMOVE PAINT BEFORE WELDING OR HEATING in Safety section.

1. Lower cutter onto safety shop stands.

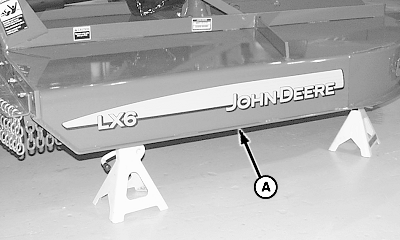

NOTE: Skid shoes (A) are welded on.

2. Remove existing skid shoe with a grinder.

3. Weld on a new skid shoe.

4. Apply green John Deere paint to exposed metal areas.

5. Raise cutter and remove safety stands.

6. Lower cutter to the ground.

A-Skid Shoe

OUO6077,0001538 -19-18FEB02-1/1
