Using Category 2, 3-Point Hitch

Special adapter bushings are available from your John Deere dealer to accommodate tractors with category 2, 3-point hitch.

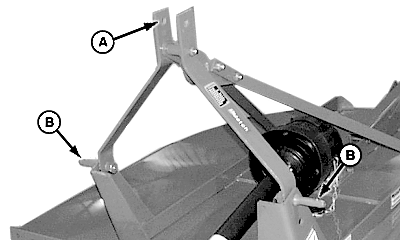

Install bushings on cutter hitch pins (B) and tractor center link connection at (A).

A-Center Link Connection
B-Hitch Pins

OUO6077,000153B -19-18FEB02-1/1
