Removing and Installing Tailwheel Support

causym CAUTION: When removing and installing tailwheel support, it will be necessary to support the cutter. Before servicing cutter, refer to PRACTICE SAFE SERVICE PROCEDURES at the beginning of this section.

1. Remove M12 lock nuts, washers and M12 x 100 cap screws (A).

2. Remove tailwheel support.

3. Install tailwheel support in reverse order.

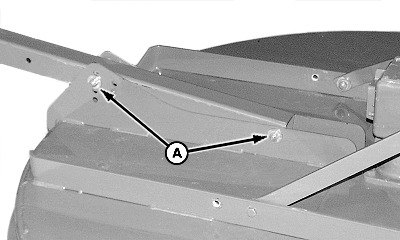

W05164


A-Lock Nuts, Washers, and Cap Screws, M12 x 100

OUO6077,000154F -19-28FEB02-1/1
