Disassembling and Assembling Driveline Shields

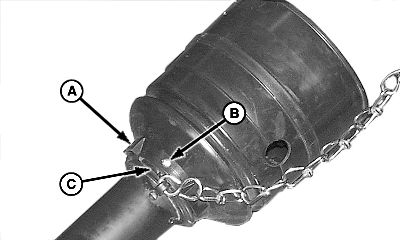

2. Remove driveline shield screw (B).

3. Rotate cone to align tab (C) with hole (A) and slide shield rearward off of driveline.

4. Assemble in reverse order.

A-Hole
B-Screw
C-Tab

OUO6077,0001558 -19-05MAR02-1/1
