Remove Shipping Dunnage and Parts

causym CAUTION: To help prevent bodily injury from accidental lowering of the cutter, attach a lifting strap or chains to cutter rear support frame and a hoist.

1. Wrap lifting strap or chains around cutter rear support frame and attach to a hoist.

TS219

OUO6077,000155D -19-05MAR02-1/3

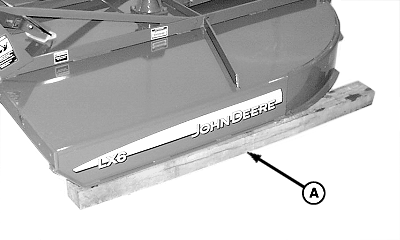

2. Lower machine onto 102 mm (4 in.) blocks (A) as shown.

3. Remove all shipping bands, wires and loose parts from around the machine.


A-Block

W05041

OUO6077,000155D -19-05MAR02-2/3

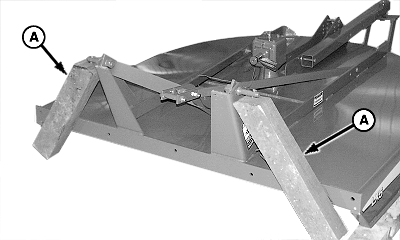

4. Remove shipping blocks (A) from front of cutter.


A-Blocks

W05040

LX5 Shown
