Selecting Hitch Pin Position

IMPORTANT: Avoid damage to front of cutter from tire or driveline contact or interference. Hitch settings can be changed on LX4 and LX5 cutters or draft and center links can be adjusted on tractor.

With tractor rear tread set to minimum width and/or tractor equipped with unapproved larger tires, interference may occur with the safety shield or sill of the cutter. If interference exists, a wider tread setting may have to be used or change hitch pin and strap position.

Clearance between the tractor tires and cutter may also be obtained by adjusting the center links and lift links. (See ADJUSTING CUTTING HEIGHT in Operating the Cutter section.)

NOTE: LX4 and LX5: There is a choice of "HIGH" or "LOW" positions for the hitch pins. Choose the correct position for your tractor and application.

1. Select hitch pin position:

• LX4 and LX5; There are two positions for hitch pins.
  • Hitch pins in LOW position (A) and braces attached in rearward hole. (Typically used on small tractors with small tires to obtain lift height for transporting.)
  • Hitch pins in HIGH position (B) and braces attached in forward hole.
• LX6; Hitch pins must be located in the HIGH position only.

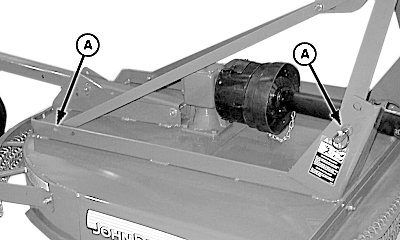

A-Low Position

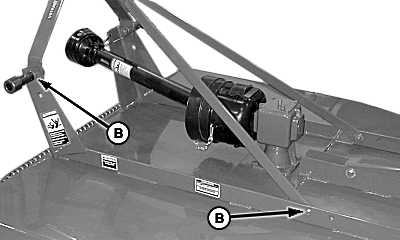

B-High Position

OUO6077,0001566 -19-23MAR05-1/3

Specification

A-Nut

OUO6077,0001566 -19-23MAR05-2/3

NOTE: Bushing (B) fits INSIDE hole in brace (A).

3. If braces were relocated, insert 0.5 x 0.75 x 0.44 in. bushing (B) into hole in brace (A).

4. Attach brace (A) into frame using an M12 x 40 cap screw (C), bushing (B), 13 x 37 x 3 mm washer (D) and M12 lock nut (E). Tighten to specifications.

Specification

5. Repeat on opposite brace.

A-Brace
B-Bushing, 0.5 x 0.75 x 0.44 in.
C-Cap Screw, M12 x 40
D-Washer, 13 x 37 x 3 mm
E-Lock Nut, M12
