Every 10 Hours or Daily

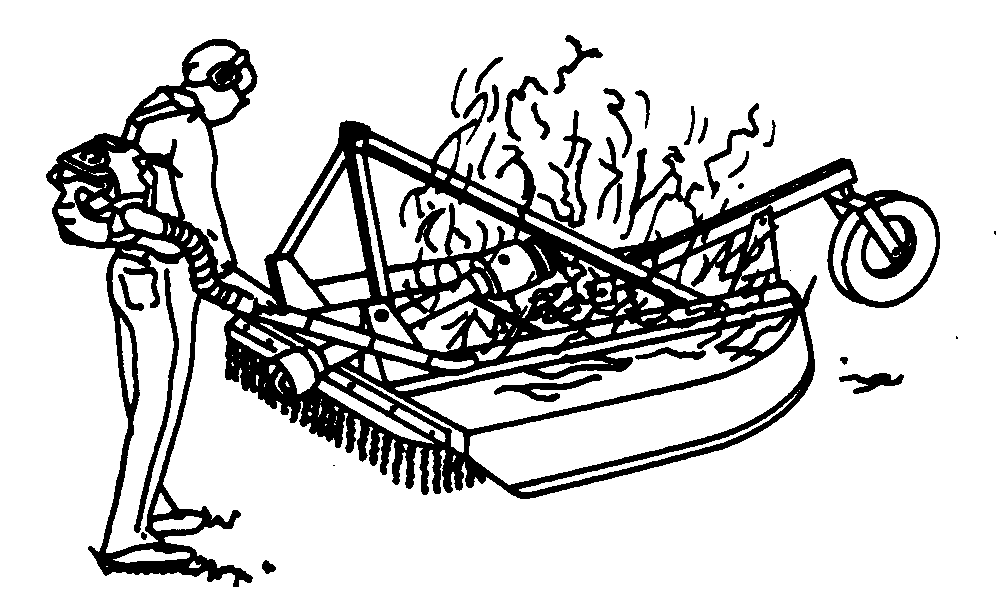

IMPORTANT: Avoid machine damage due to build up of debris, if any, on cutter deck. Clean cuttings from deck DAILY or more often if necessary.

Build up of material may interfere with driveline, cause overheating of gear case resulting in component damage or cause deck to be corroded due to moisture in material.

OUO6077,00019F3 -19-26MAY05-1/4

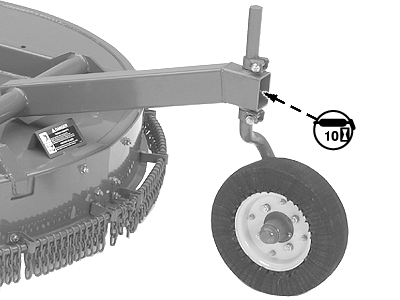

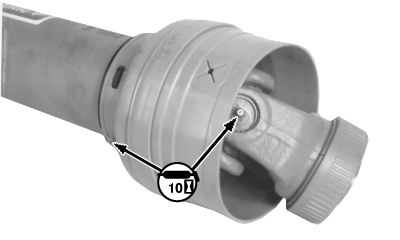

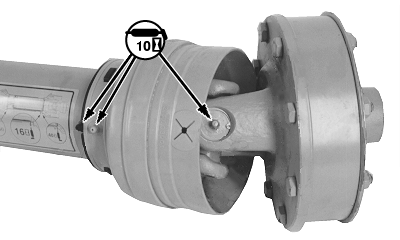

NOTE: 609 export driveline shown. 609 and 709 North American driveline is similar.

OUO6077,00019F3 -19-26MAY05-2/4

OUO6077,00019F3 -19-26MAY05-3/4

CAUTION: Before servicing machine refer to LUBRICATING AND MAINTAINING MACHINE SAFELY at the beginning of this section.

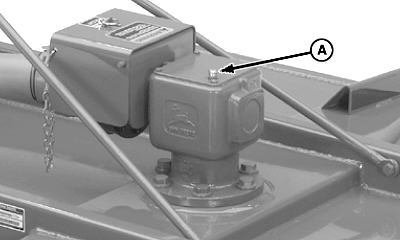

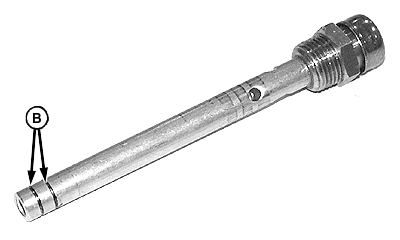

Remove dipstick/vent (A). Oil level should be between lines (B). Add John Deere GL-5 Gear Lubricant, or equivalent, if necessary.

A-Dipstick/Vent
B-Lines

OUO6077,00019F3 -19-26MAY05-4/4
