Prepare the Loader

1. Remove loader from pallet and lay loader flat on ground, as shown.

2. Remove shipping banding and wire.

3. Remove and discard spacers (A) from lift cylinder rod ends.


A-Spacer (2 used)

W09275

200CX Shown

OUO6038,0001D9B -19-03MAR08-1/3

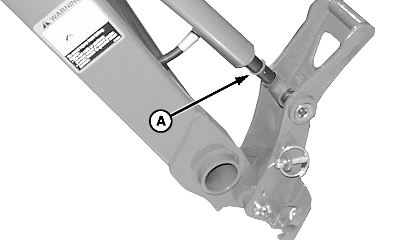

4. Cut paint mask rings (A) off all cylinders.


A-Paint Mask Rings

W07266

OUO6038,0001D9B -19-03MAR08-2/3

Install Bucket/Attachment

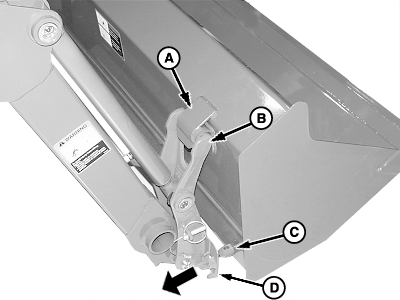

1. Roll top of bucket/attachment back and align hook (A) with holder (B).

2. Using lifting straps, raise front of loader high enough to allow pin (C) to locate into holder strap (D) on each side of attachment.

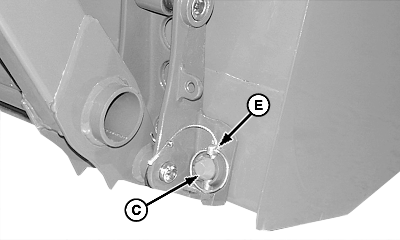

3. Remove quick lock pin (E) from storage position and install into pin (C) on each side of attachment.

Install Hydraulic Hoses

Install loader-to-tractor hydraulic hoses. (Refer to Installation Instructions available online to John Deere dealers.)


A-Hook
B-Holder
C-Bucket/Attachment Pin
D-Holder Strap
E-Quick Lock Pin

W07272
W07273
