Detaching Loader

causym CAUTION: To help prevent personal injury caused by falling or shifting loader, always detach loader on a hard level surface. Do not detach loader equipped with a pallet fork. Use of a materials bucket is recommended.

1. Remove ballast box. (See procedure in this section.)

2. Be sure loader is equipped with a materials bucket.

3. Start tractor engine.

4. Release parking brake and/or place transmission in NEUTRAL .

5. Dump bucket 10-20° and lower to ground.

6. Retract lift cylinders, raising front wheels 25-50 mm (1-2 in.) off the ground.

W14000

OUO6077,00019A1 -19-01FEB08-1/7

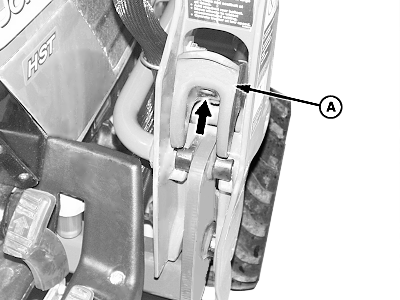

7. Move both loader mast latches (A) upward into UNLOCKED position.


A-Latch

W07232

Right-Hand Side Shown

OUO6077,00019A1 -19-01FEB08-2/7

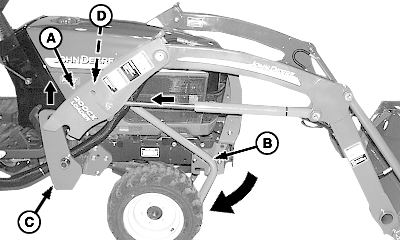

8. Extend loader lift cylinders until parking stand (B) contacts ground, masts (A) completely lift off frames (C) and latches (D) automatically snap into locked position.

9. Engage tractor parking brake and/or place transmission in PARK .

10. Shut off tractor engine and remove key.


A-Mast
B-Parking Stand
C-Frame
D-Latch

W07233

OUO6077,00019A1 -19-01FEB08-3/7

causym CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

11. Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)

X9811

OUO6077,00019A1 -19-01FEB08-4/7

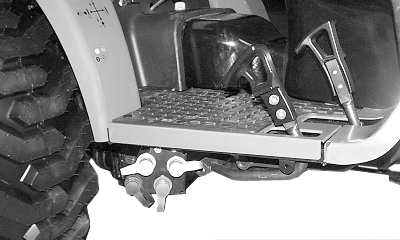

12. Disconnect hoses at couplers and install dust plugs and caps.

W07405

2210, 2305, 2320, 2520 and 2720 Tractors

W07250

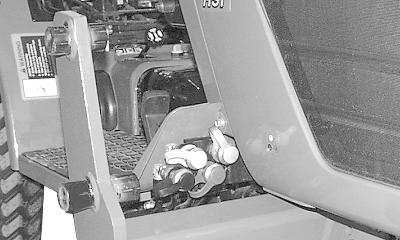

4100, 4110 and 4115 Tractors

OUO6077,00019A1 -19-01FEB08-5/7

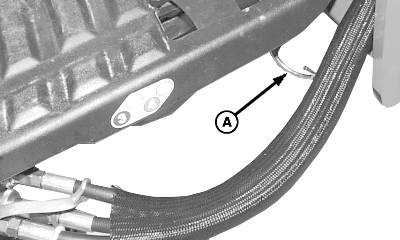

13. 2210, 2305, 2320, 2520 and 2720 Tractors: Remove hydraulic hoses from guide (A).


A-Hose Guide

W07300

OUO6077,00019A1 -19-01FEB08-6/7

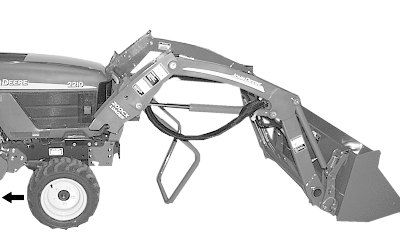

IMPORTANT: To avoid hose damage, be sure hoses do not catch on tractor when moving away from loader.

14. Store hoses on lift cylinder, DO NOT lay them on the ground.

15. Start tractor engine.

16. Disengage tractor parking brake and place transmission in REVERSE . Slowly move tractor away from loader.

W07237

OUO6077,00019A1 -19-01FEB08-7/7
