Preparing to Attach Loader

causym CAUTION: To help prevent personal injury from tractor instability, be sure to prepare tractor for loader operation as outlined in Preparing the Tractor section.

1. Make sure tractor is prepared for loader operation. (See Preparing the Tractor section.)

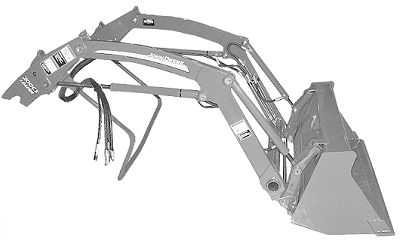

2. Check loader for any damaged or missing parts.

3. Be sure all hydraulic fittings on loader and tractor are free of dirt.

W09282

OUO6077,00019A2 -19-31JAN08-1/2

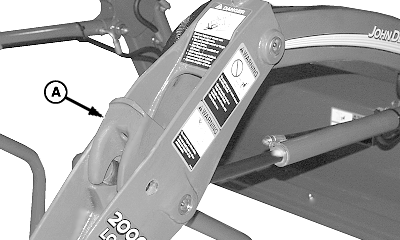

4. Latches (A) should be in LOCKED position, as shown.


A-Latch (1 each side)

W07238

OUO6077,00019A2 -19-31JAN08-2/2
