Attaching Loader

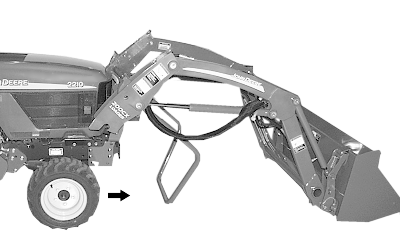

1. Drive tractor slowly, straight into loader.

2. Align masts with mounting frames.

3. Engage tractor parking brake and/or place transmission in PARK .

4. Shut off tractor engine and remove key.

W07239

OUO6077,00019A3 -19-04FEB08-1/7

causym CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

5. Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)

X9811

OUO6077,00019A3 -19-04FEB08-2/7

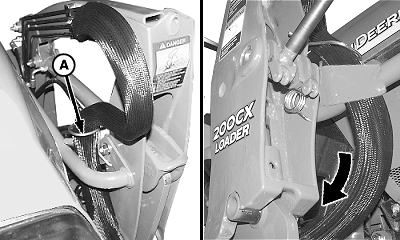

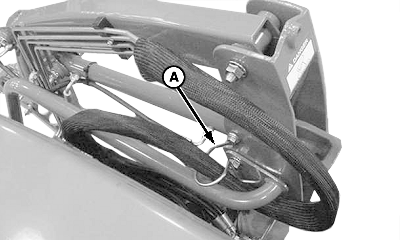

6. Make sure hoses are routed through hose guide (A), as shown.


A-Hose Guide

W09281

2210, 2305, 2320, 2520 and 2720 Tractors

W07366

4100, 4110 and 4115 Tractors

OUO6077,00019A3 -19-04FEB08-3/7

causym CAUTION: Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected correctly.

NOTE: Hose connections are identified by matching the color-coded cap on the hose end with the same color-coded plug on the control valve coupler. If caps are missing, see IDENTIFYING HOSE CONNECTIONS in Service section.

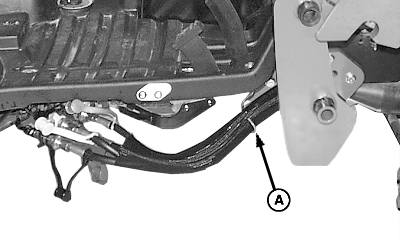

7. 2210, 2305, 2320, 2520 and 2720 Tractors: Route hoses above mounting frames and through hose guide (A).

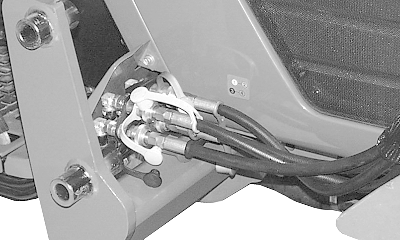

8. Connect hoses using color-coded dust caps matching numbers and/or colors on decal by coupler plate.


A-Hose Guide

W07241

2210, 2305, 2320, 2520 and 2720 Tractors

W07287

4100, 4110 and 4115 Tractors

OUO6077,00019A3 -19-04FEB08-4/7

NOTE: It may be necessary to drive tractor forward slowly to keep masts/frames in line while performing the following procedures.

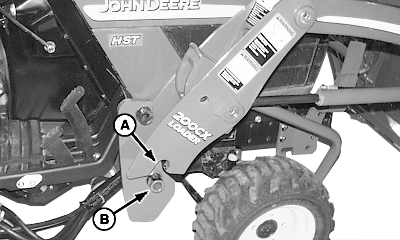

9. Be sure bushing (B) on mounting frame is aligned with notch (A) in masts.

10. Start tractor engine.

11. Release parking brake and/or place transmission in NEUTRAL .


A-Notch
B-Bushing

W07242

Right-Hand Side Shown

OUO6077,00019A3 -19-04FEB08-5/7

IMPORTANT: Make sure masts are fully seated on mounting frames.

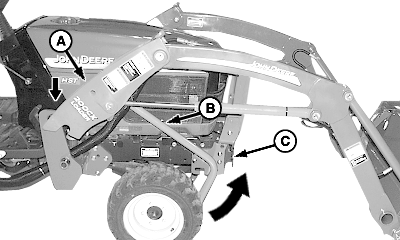

12. Slowly retract lift cylinders. Masts (A) will lower onto mounting frames and parking stand (B) will raise up below weight bracket (C).


A-Mast
B-Parking Stand
C-Weight Bracket

W07243

OUO6077,00019A3 -19-04FEB08-6/7

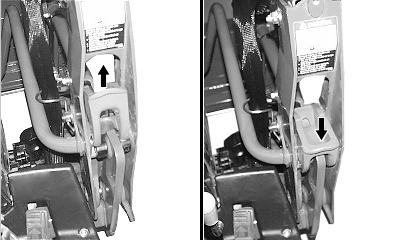

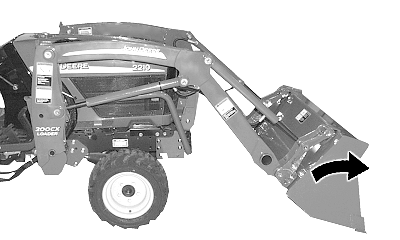

13. Dump bucket 10-20° and retract lift cylinders until loader masts move back and latches lock over mounting frame bushings.

14. Extend lift cylinders and lift bucket from ground to ensure loader is properly mounted.

15. Add appropriate ballast. (See Preparing the Tractor section.)

16. Engage tractor parking brake and/or place transmission in PARK .

17. Shut off tractor engine and remove key.

W07244
W07245

OUO6077,00019A3 -19-04FEB08-7/7
