Every 50 Hours

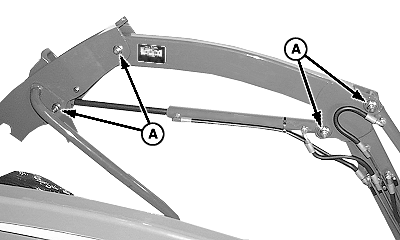

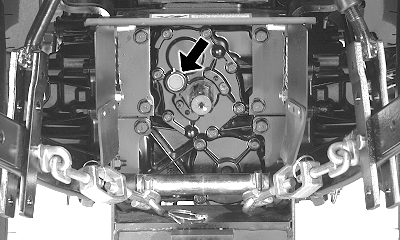

Tighten loader and mounting frame hardware (A) on both sides to specifications.
| Tractor |
Hardware |
Torque Specification |
| 2210, 2305, 2320 |
Cap Screws, M12 x 35
Tie Bar Nuts, M12 |
140 N·m (103 lb-ft)
94 N·m (69 lb-ft) |
| 2520 |
Cap Screws, M12 x 30
Cap Screws, M12 x 40
Tie Bar Nuts, M20 |
140 N·m (103 lb-ft)
140 N·m (103 lb-ft)
270 N·m (199 lb-ft) |
| 2720 |
Cap Screws, M12 x 30
Cap Screws, M12 x 35
Cap Screws, M12 x 55 |
140 N·m (103 lb-ft)
140 N·m (103 lb-ft)
140 N·m (103 lb-ft) |
| 4115 |
Cap Screws, M12 x 30
Cap Screws, M12 x 40
Tie Bar Nuts, M20 |
140 N·m (103 lb-ft)
140 N·m (103 lb-ft)
270 N·m (199 lb-ft) |
| 4100, 4110 |
Cap Screw, M20 x 40
Tie Bar Nuts, M20
Cap Screws, M12 x 35
Cap Screws, M10 x 35 |
620 N·m (457 lb-ft)
270 N·m (199 lb-ft)
140 N·m (103 lb-ft)
80 N·m (60 lb-ft) |
|
2520 Mounting Frame (Right-Hand Side Shown)
A-Mounting Frame Hardware
|
|
|
OUO6077,00019AC -19-01FEB08-1/3
|
|

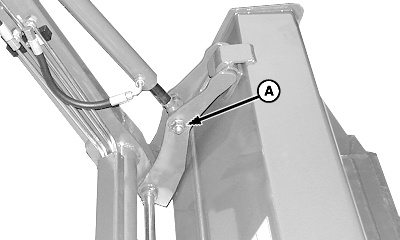

Tighten ten nuts (A) (inside frame), on pivot pins on both sides, to specification.
Specification
|
Nuts
-Torque
|
150 N·m
|
(111 lb-ft)
|
A-Nuts, M16
|
|
|
|
OUO6077,00019AC -19-01FEB08-2/3
|
|
Check Transmission/Hydraulic Oil Level
1.
Cycle all cylinders three or four times.
2.
Retract bucket cylinders completely and lower loader to ground.
3.
Shut off tractor engine and remove key.
4.

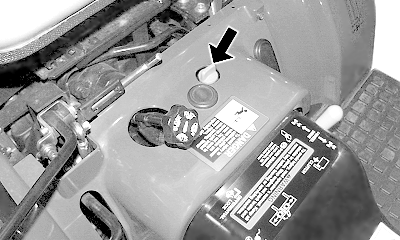

Check transmission/hydraulic oil level. (See your tractor Operator's Manual).
|
2210, 2305, 2320, 2520 and 2720
4000 Series Tractor
|
|
|
